Description
Service kit for Wolf and Digiwolf Flow Meters

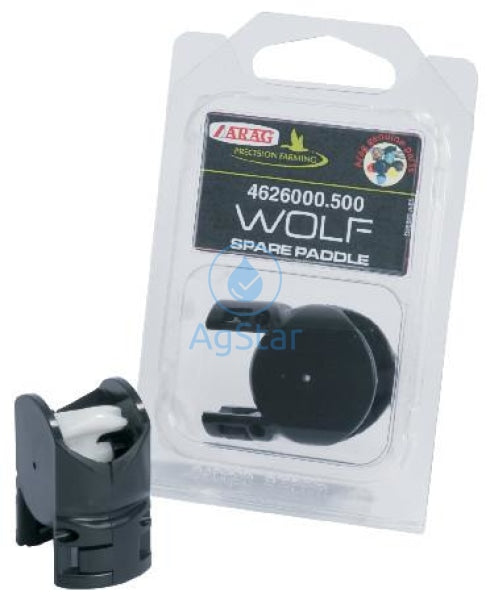

Spare paddle for WOLF flow meters
Benefits
* Hi-precision and good price/performance ratio
* Variants with fork connectors for flexible connection layout
* Variants suitable for fitting into control units and equipped with hi-pressure brass flanges
* Operating status LED
* Sapphire paddle pin to minimize rotational friction and maximize sensitivity and accuracy
* Paddle assembly equipped with ‘TWIST’ system for either cleaning or replacing operations without the need of any tools
* Fully sealed and watertight electronic sensor
* Rates from 2.5 to 800 l/min
* Hi-precision and good price/performance ratio
* Variants with fork connectors for flexible connection layout
* Variants suitable for fitting into control units and equipped with hi-pressure brass flanges
* Operating status LED
* Sapphire paddle pin to minimize rotational friction and maximize sensitivity and accuracy
* Paddle assembly equipped with ‘TWIST’ system for either cleaning or replacing operations without the need of any tools
* Fully sealed and watertight electronic sensor
* Rates from 2.5 to 800 l/min
TECHNICAL FEATURES
- Typical error 1% of full scale
- Operating pressure: up to 40 bars¹
- Power supply 4.5 to 26 Vdc
- 0-12 Vdc pulse output with frequency proportional to rate
- Max. consumption: 25 mA
- Parts in contact with the fluid are made of fiberglass and Delrin® reinforced Nylon
¹: operating pressure depends on selected connector/union.
