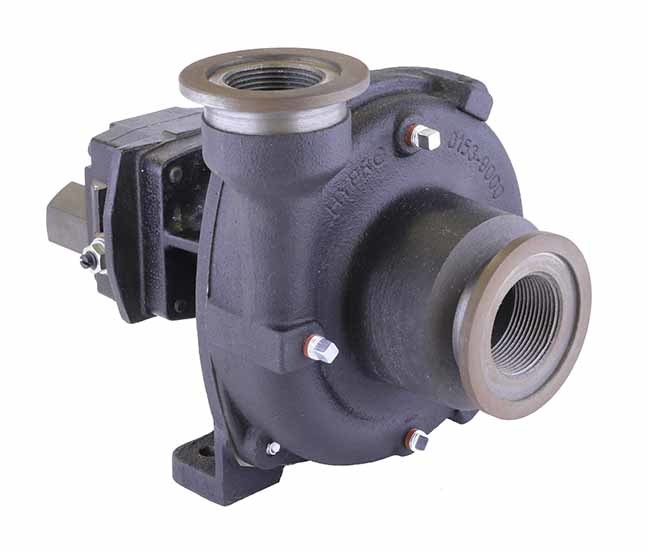

9303C-HM1C-BU Life Guard Seal Universal Flange & FPT Threads

HyproSKU: 9303C-HM1C-BU

Price:
$1,652.22

Description

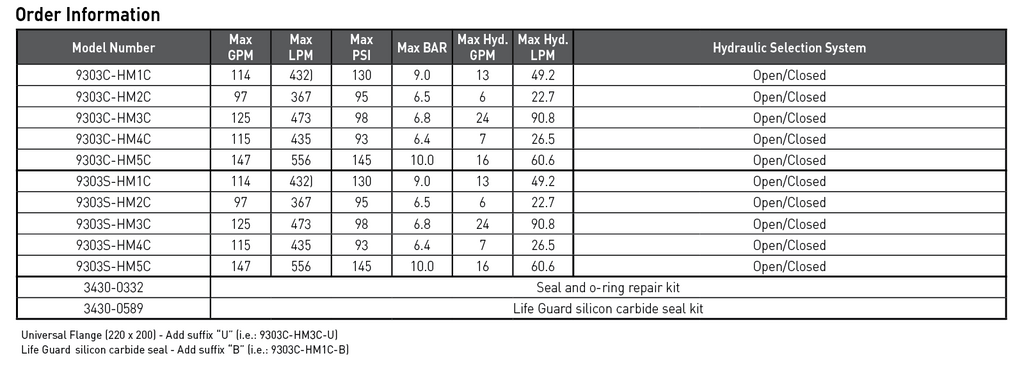

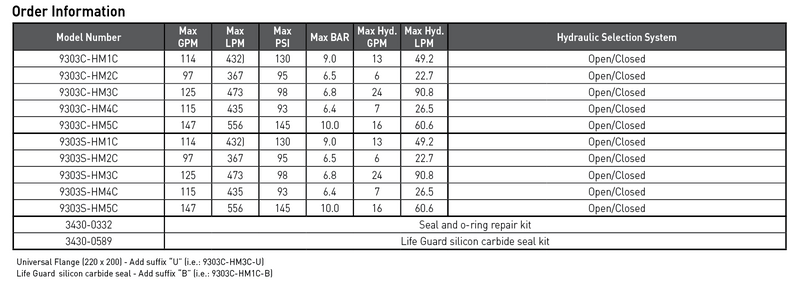

9303C-HM1C-BU

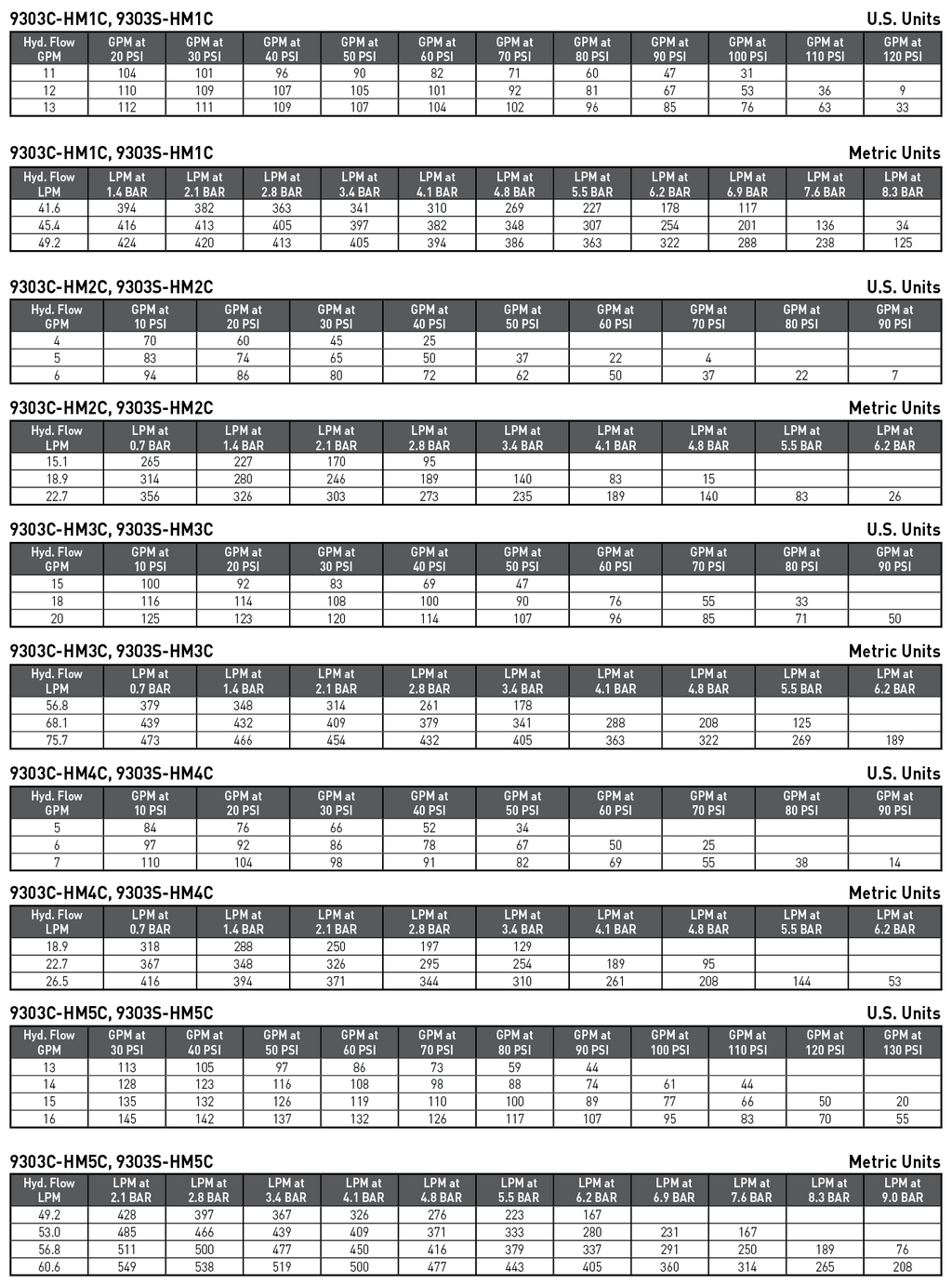

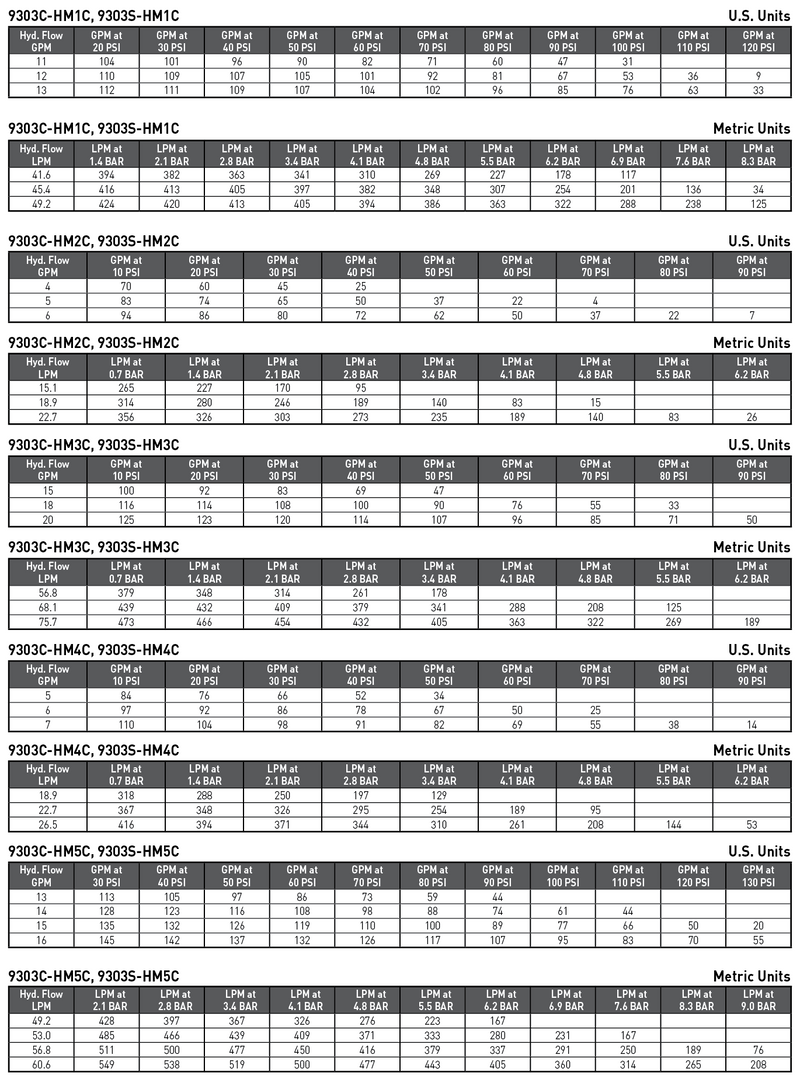

Recommended Hydraulic Flow:11-13gpm

Max Solution Flow:114gpm

Max PSI:130

Hydraulic ports: 0.5 inch NPT inlet, 0.75 inch NPT outlet

Construction Details

-cast iron Housing

- Hydraulic motor drive (for open center, closed center and load-sensing systems) -220 inlet x 200 outlet universal flange, 2 inch Full port by 2 inch Standard Port (1.5Inch) Universal/Manifold Flange Outlet

-Also has 1.5 Inch Inlet and 1.25 inch threaded outlet on pump housing

- Max. fluid temperature: 140°F/60°C

- Impeller: Cast Iron models – Nylon - Motor: internal gear gerotor - Hydraulic ports: 0.5 inch NPT inlet, 0.75 inch NPT outlet

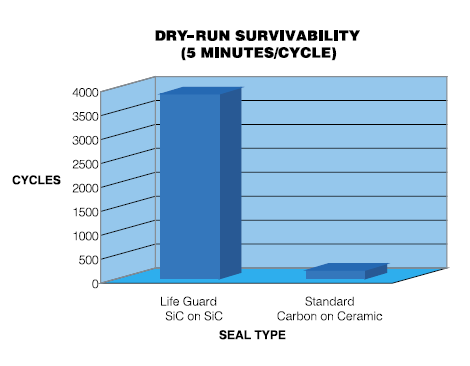

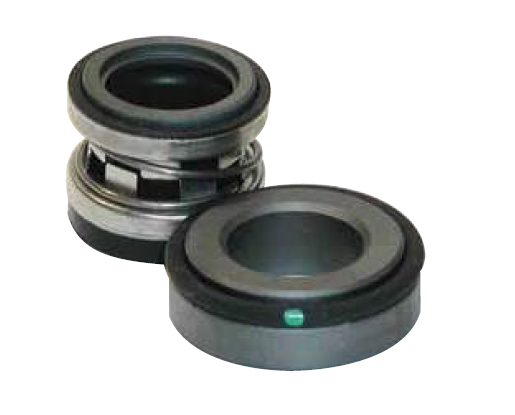

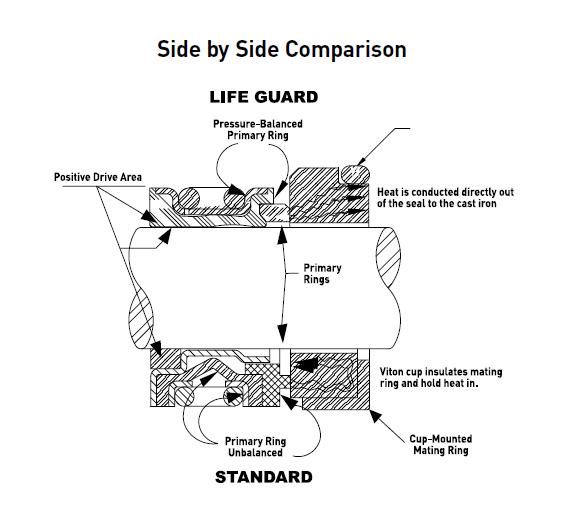

- Pump seals: Life Guard silicon carbide (B) Longer life than standard Viton/Ceramic Seals - Life Guard seals are the industry standard on OEM equipment - Hydraulic motor seal: double-lip Teflon® and case drain available

- Max. motor psi: 3000 (bar: 207) - Weight: 26 lbs./11.8 kg
