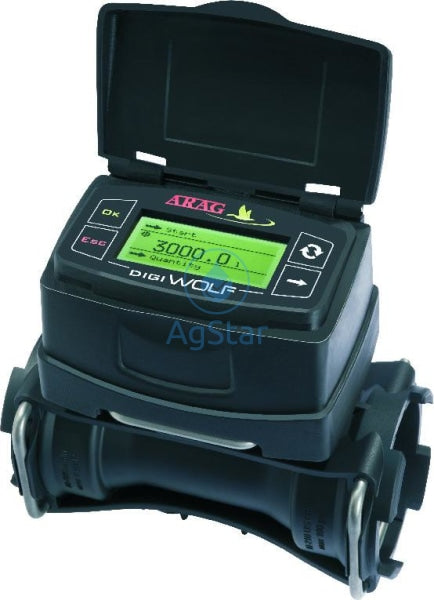

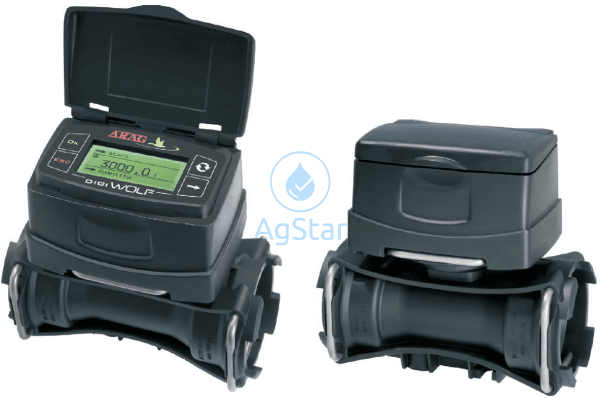

DigiWolf Visual Flow meter 12vdc cable 1.5" (5-106 us gpm) (20 to 400lpm)

ARAGSKU: 4637506A

Price:
$1,079

Description

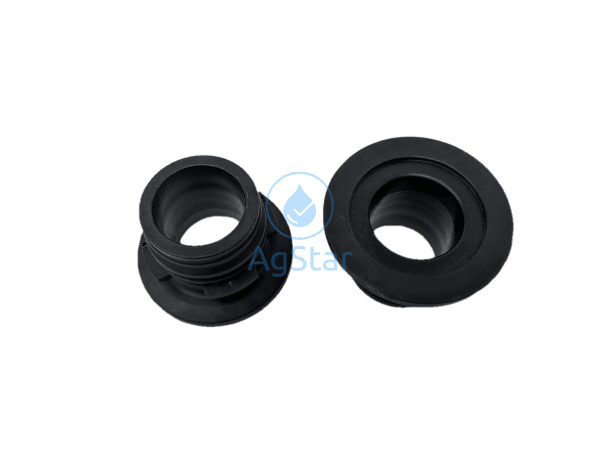

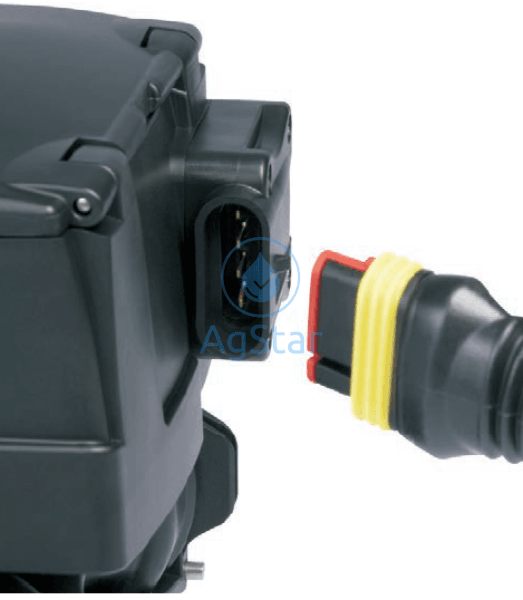

Includes T6F to 2" Standard Port Flange Connections (qty2) and 3 Metre Power Cable (10ft)

GENERAL FEATURES
  • Available with Pump Stop version for automatic tank filling command
  • Selectable value for the fluid amount to be filled into the tank
  • Power supply: 12 Vdc
  • 0-12 Vdc pulse output with frequency proportional to rate
TECHNICAL FEATURES
Benefits
  • High accuracy
  • Programmable multilingual graphic display
  • 12 vdc Cable Powered
  • Display snap-on cover
  • Body with fork connectors for flexible connection layout
  • Sapphire paddle pin to minimize rotational friction and maximize sensitivity and accuracy
  • Paddle assembly equipped with ‘TWIST’ system for either cleaning or replacing operations without the need of any tools
  • Fully sealed and watertight electronic sensor
  • Rates from 20 to 400 l/min



Code 4627506A
Fork Coupling (T) T6 F
Ø  1" 1/2
Flow rate 20-400 l/min
Flow rate  5-106 US GPM
Pressure 12 bar
Pressure  174 PSI
Pressure Drop 0,5 bar/7psi
